| PANEL SAW | |
| Motor power | 3000W |
| Big Blade Size(mm) | Ф250xФ30x3.2x2.2x24T |
| Scoring saw blade Size(mm) | Ф80xФ20x3.2x2.2x8T |
| Big Blade speed | 4050RPM |
| Scoring saw blade speed | 6300RPM |
| Max cutting height | 60mm |
| Cutting height for blade 45° | 42mm |
| Table Size | 1200mm x 840(1080)mm |
| Dust chute dia | 100mm |
| Sliding table length / travel | 1200/1400mm for PM250/30-1200 |
| 1600/1800mm for PM250/30-1600 |
| SPINDLE MOULDER | |
| Motor | 3000W |
| Spindle Speed | 2000/4000/6000RPM |
| Spindle Dia | 30mm |
| Spindle travel | 130mm |
| Max tooling dia above table | 200mm |
| Max tooling dia below table | 140mm |
| Max cutting height | 105mm |
| Dust chute dia | 100mm |

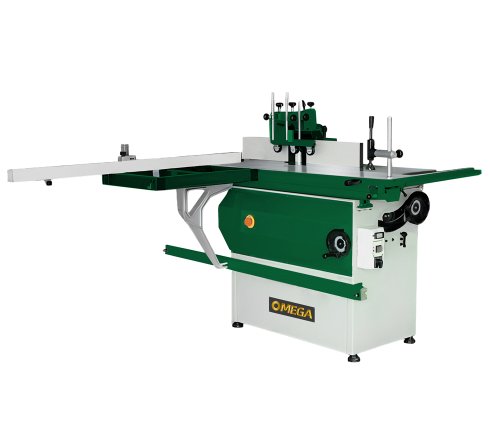

PM250/30-1200 PANEL SAW + SPINDLE MOULDER WITH 1200MM SLIDING TABLE
PM250/30-1600 PANEL SAW + SPINDLE MOULDER WITH 1600MM SLIDING TABLE
